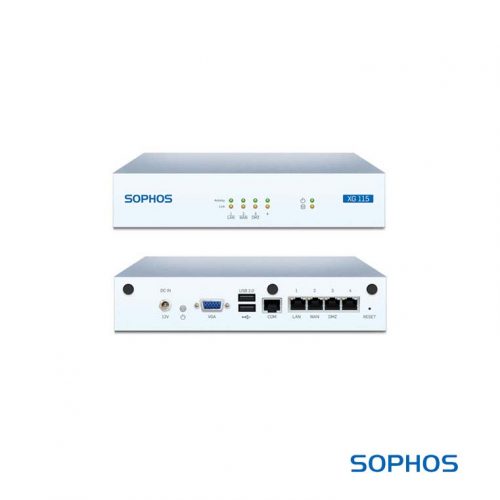

XG Series Desktop XG 115/115w

Sophos XG Firewall
Unrivalled simplicity, security and insight
Sophos XG Firewall brings a fresh new approach to the way you
manage your firewall, respond to threats, and monitor what’s
happening on your network. Get ready for a whole new level of
simplicity, security and insight. Based upon the award-winning Sophos SG Series, our XG Series firewalls come pre-loaded with the Sophos Firewall OS to provide optimal performance to meet today’s network security requirements.

Description

Environment

Power consumption
4.83W, 16.468 BTU/hr (idle)
9.84W, 33.55 BTU/hr (full load)
Operating temperature
0-40°C (operating)
-20 to +80°C (storage)
Humidity 10%-90%, non-condensing

Product Certifications

Certifications
CB, CE, FCC Class B, IC, VCCI,
MIC, RCM, UL, CCC

Performance

Firewall throughput  3.5 Gbps
Firewall IMIX  1.33 Gbps
VPN throughput  350 Mbps
IPS throughput  900 Mbps
NGFW (IPS + App Ctrl +
WebFilter) max.
 310 Mbps
Antivirus throughput (proxy)  520 Mbps
Concurrent connections  6,000,000
New connections/sec  27,500
Maximum licensed users unrestricted

Wireless Specification

No. of antennas 3 external
MIMO capabilities 3 x 3:3
Wireless interface
802.11a/b/g/n
(2.4 GHz / 5 GHz)

Physical interfaces

Storage (local
quarantine/logs)
integrated SSD
Ethernet interfaces
(fixed)
4 GE copper
I/0 Ports (rear)
2 x USB 2.0
1 x COM (RJ45)
1 x VGA
Power Supply
External auto
ranging DC: 12V,
100-240VAC,
50-60 Hz

Physical specifications

Mounting
Rackmount kit available
(to be ordered separately)
Dimensions
Width x Depth x Height
225 x 150 x 44 mm
8.86 x 5.91 x 1.73 inches
Weight
1.19 kg / 2.62 lbs (unpacked)
2.185 kg / 4.82 lbs (packed)
