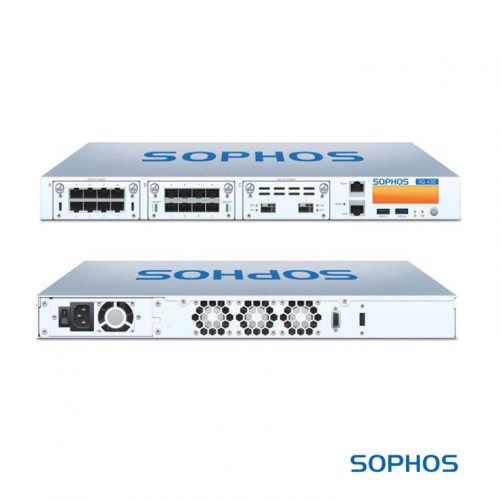

XG Series 1U XG 430

Sophos XG Firewall
Unrivalled simplicity, security and insight
Sophos XG Firewall brings a fresh new approach to the way you
manage your firewall, respond to threats, and monitor what’s
happening on your network. Get ready for a whole new level of
simplicity, security and insight. Based upon the award-winning Sophos SG Series, our XG Series firewalls come pre-loaded with the Sophos Firewall OS to provide optimal performance to meet today’s network security requirements.

SKU: 807fa5cddd78 Category: Tags: , ,

Product not in stock? Add this product to the quote list and submit below and we will get back to you as soon as possible!

Thank you for contacting DigiWorks, we will get back to you as soon as possible!

Availability of:

Your Name (required)

Your Email (required)


Your Message

To use CAPTCHA, you need the Really Simple CAPTCHA plugin installed.

Submit Quote Request


Power consumption
XG 430: 36W, 123 BTU/hr (idle)
147W, 502 BTU/hr (full load)
XG 450: 53W, 181 BTU/hr (idle)
163W, 556 BTU/hr (full load)
Operating temperature
0-40°C (operating)
-20 to + 70°C (storage)
Humidity  0%-90%, non-condensing

Product Certifications

CB, CE, FCC Class A, IC,


Firewall throughput  37 Gbps
Firewall IMIX  12.95 Gbps
VPN throughput  4.8 Gbps
IPS throughput  9 Gbps
NGFW (IPS + App Ctrl +
WebFilter) max.
 4.8 Gbps
Antivirus throughput (proxy)  6.5 Gbps
Concurrent connections  20,000,000
New connections/sec  200,000
Maximum licensed users  unrestricted

Physical interfaces

Storage (local
 integrated SSD
Ethernet interfaces
 8 GE copper
No. of FleXi Port slots  3
FleXi Port modules (optional)
8 port GE copper
8 port GE SFP*
2 port 10 GE SFP+*
4 port 10 GE SFP+*
4 port GE copper
LAN bypass
I/O ports
2 x USB 3.0 (front)
1 x USB 3.0 (rear)
1 x COM (RJ45)
1 x VGA (rear)
LCD module
Power supply
Internal auto-
240VAC, 50-60 Hz

Physical specifications

Mounting  1U rackmount (sliding rails incl.)
Width x Depth x Height
438 x 483 x 44mm
17.24 x 19 x 1.75 inches
8.3 kg / 18.29 lbs (unpacked)
13.1 kg / 28.88 lbs (packed)
