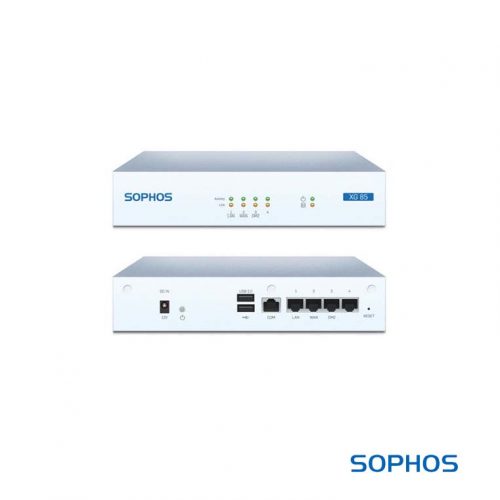

XG Series Desktop XG 85/85w

Sophos XG Firewall
Unrivalled simplicity, security and insight
Sophos XG Firewall brings a fresh new approach to the way you
manage your firewall, respond to threats, and monitor what’s
happening on your network. Get ready for a whole new level of
simplicity, security and insight. Based upon the award-winning Sophos SG Series, our XG Series firewalls come pre-loaded with the Sophos Firewall OS to provide optimal performance to meet today’s network security requirements.

Description

Environment

Power consumption
3.24W, 11.04 BTU/h (idle)
5.64W, 19.232 BTU/h (full load)
Operating temperature
0-40°C (operating)
-20 to +80°C (storage)
Humidity 10%-90%, non-condensing

Product Certifications

Certifications
CB, CE, FCC Class B, IC, VCCI,
MIC, RCM, UL, CCC

Performance

Firewall throughput 2 Gbps
Firewall IMIX 780 Mbps
VPN throughput 200 Mbps
IPS throughput 510 Mbps
NGFW (IPS + App Ctrl +
WebFilter) max.
235 Mbps
Antivirus throughput (proxy) 330 Mbps
Concurrent connections 2,000,000
New connections/sec 18,000
Maximum licensed users unrestricted

Wireless Specification

No. of antennas 2 external
MIMO capabilities 2 x 2:2
Wireless interface 802.11a/b/g/n (2.4 GHz / 5 GHz)

Physical interfaces

Storage (local
quarantine/logs)
8 GB eMMC
Ethernet interfaces
(fixed)
4 GE copper
I/0 Ports (rear)
2 x USB 2.0
1 x COM (RJ45)
Power Supply
External auto ranging DC: 12V,
100-240VAC, 50-60 Hz

Physical specifications

Mounting
Rackmount kit available
(to be ordered separately)
Dimensions
Width x Depth x Height
225 x 150 x 44 mm
8.86 x 5.91 x 1.73 inches
Weight
0.95 kg / 2.09 lbs (unpacked)
1.97 kg / 4.34 lbs (packed)
