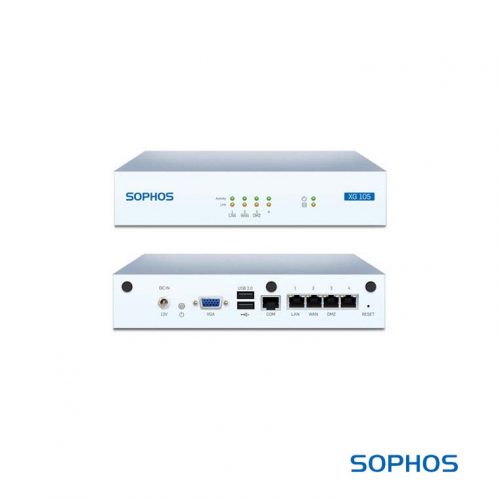

XG Series Desktop XG 105/105w

Sophos XG Firewall
Unrivalled simplicity, security and insight
Sophos XG Firewall brings a fresh new approach to the way you
manage your firewall, respond to threats, and monitor what’s
happening on your network. Get ready for a whole new level of
simplicity, security and insight. Based upon the award-winning Sophos SG Series, our XG Series firewalls come pre-loaded with the Sophos Firewall OS to provide optimal performance to meet today’s network security requirements.

Description

Environment

Power consumption
4.83W, 16.468 BTU/hr (idle)
9.84W, 33.55 BTU/hr (full load)
Operating temperature
0-40°C (operating)
-20 to +80°C (storage)
Humidity 10%-90%, non-condensing

Product Certifications

Certifications
CB, CE, FCC Class B, IC, VCCI,
MIC, RCM, UL, CCC

Performance

Firewall throughput  3 Gbps
Firewall IMIX  1.04 Gbps
VPN throughput  300 Mbps
IPS throughput  700 Mbps
NGFW (IPS + App Ctrl +
WebFilter) max.
 270 Mbps
Antivirus throughput (proxy)  430 Mbps
Concurrent connections  3,200,000
New connections/sec  27,500
Maximum licensed users unrestricted

Wireless Specification

No. of antennas 3 external
MIMO capabilities 3 x 3:3
Wireless interface
802.11a/b/g/n
(2.4 GHz / 5 GHz)

Physical interfaces

Storage (local
quarantine/logs)
integrated SSD
Ethernet interfaces
(fixed)
4 GE copper
I/0 Ports (rear)
2 x USB 2.0
1 x COM (RJ45)
1 x VGA
Power Supply
External auto
ranging DC: 12V,
100-240VAC,
50-60 Hz

Physical specifications

Mounting
Rackmount kit available
(to be ordered separately)
Dimensions
Width x Depth x Height
225 x 150 x 44 mm
8.86 x 5.91 x 1.73 inches
Weight
1.19 kg / 2.62 lbs (unpacked)
2.185 kg / 4.82 lbs (packed)
