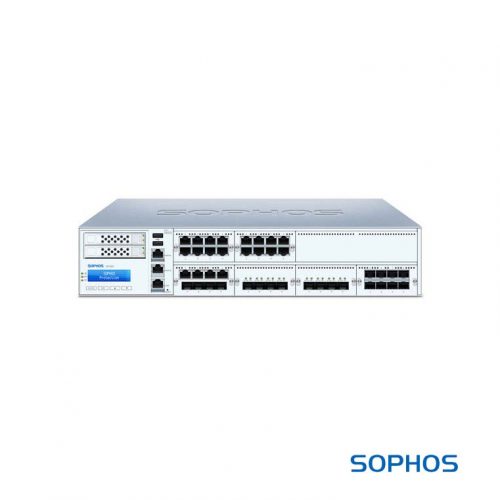

XG Series 2U XG 650

Sophos XG Firewall
Unrivalled simplicity, security and insight
Sophos XG Firewall brings a fresh new approach to the way you
manage your firewall, respond to threats, and monitor what’s
happening on your network. Get ready for a whole new level of
simplicity, security and insight. Based upon the award-winning Sophos SG Series, our XG Series firewalls come pre-loaded with the Sophos Firewall OS to provide optimal performance to meet today’s network security requirements.

SKU: b622f39ac714 Category: Tags: , ,

Environment
Power consumption
XG 550: 270.5W, 922.98BTU/hr (idle)
416.1W, 1419.79BTU/hr (full load)
XG 650: 320.5W, 1093.59BTU/hr (idle)
493.1W, 1682.53BTU/hr (full load)
Operating temperature
0-40°C (operating)
-40 to +70°C (storage)
Humidity  5%-90%, non-condensing

Product Certifications
Certifications
CE, UL, FCC, ISED, CCC,
VCCI, RCM, BIS (CRS)

Performance
Firewall throughput  85 Gbps
Firewall IMIX  28 Gbps
VPN throughput  9 Gbps
IPS throughput  20 Gbps
NGFW (IPS + App Ctrl +
WebFilter) max. 		 10 Gbps
Antivirus throughput (proxy)  13 Gbps
Concurrent connections  30,000,000
New connections/sec  240,000
Maximum licensed users  unrestricted

Physical interfaces
Storage (local
quarantine/logs)
2 x integrated
hot-swap
SSD (RAID)
Ethernet interfaces
(removable)
  8 GE copper
No. of FleXi Port slots  6
FleXi Port modules (optional)
8 port GE copper
8 port GE SFP*
2 port 10 GE SFP+*
4 port 10 GE SFP+*
4 port SFP*
plus 4 port GE
copper LAN bypass
I/O ports
2 x USB 2.0 (front)
1 x USB 3.0 (rear)
2 x Mgmt Port (eth0/eth1, front)
1 x COM (RJ45) (front)
1 x VGA (rear)
Display  Multi-function LCD module
Power supply
2 x hot-swap
internal auto-
ranging 100-
240VAC, 50-60
Hz PSU

Physical specifications
Mounting  2U sliding rails (included)
Dimensions
Width x Depth x Height
438 x 600 x 88 mm
17.24 x 23.62 x 3.46 inches
Weight
17.8 kg / 39.24 lbs (unpacked)
27 kg / 59.53 lbs (packed)
