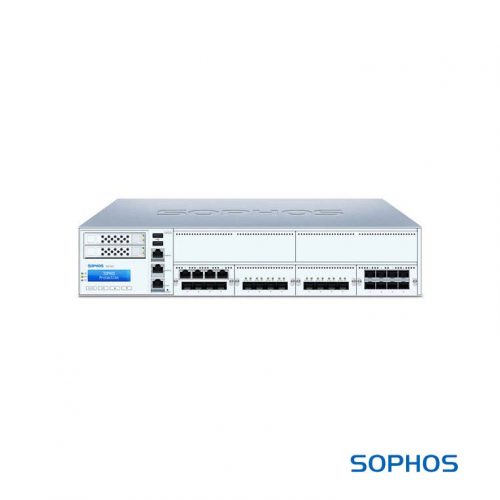

XG Series 2U XG 550

Sophos XG Firewall
Unrivalled simplicity, security and insight
Sophos XG Firewall brings a fresh new approach to the way you
manage your firewall, respond to threats, and monitor what’s
happening on your network. Get ready for a whole new level of
simplicity, security and insight. Based upon the award-winning Sophos SG Series, our XG Series firewalls come pre-loaded with the Sophos Firewall OS to provide optimal performance to meet today’s network security requirements.

SKU: fcd2897de367 Category: Tags: , ,

Product not in stock? Add this product to the quote list and submit below and we will get back to you as soon as possible!

Thank you for contacting DigiWorks, we will get back to you as soon as possible!

    Availability of:

    Your Name (required)

    Your Email (required)

    Telephone

    Your Message

    To use CAPTCHA, you need Really Simple CAPTCHA plugin installed.

    Submit Quote Request

    Environment

    Power consumption
    XG 550: 270.5W, 922.98BTU/hr (idle)
    416.1W, 1419.79BTU/hr (full load)
    XG 650: 320.5W, 1093.59BTU/hr (idle)
    493.1W, 1682.53BTU/hr (full load)
    Operating temperature
    0-40°C (operating)
    -40 to +70°C (storage)
    Humidity 5%-90%, non-condensing

    Product Certifications

    Certifications
    CE, UL, FCC, ISED, CCC,
    VCCI, RCM, BIS (CRS)

    Performance

    Firewall throughput  65 Gbps
    Firewall IMIX  23 Gbps
    VPN throughput  8.4 Gbps
    IPS throughput  17 Gbps
    NGFW (IPS + App Ctrl +
    WebFilter) max.
     9 Gbps
    Antivirus throughput (proxy)  10 Gbps
    Concurrent connections  30,000,000
    New connections/sec  220,000
    Maximum licensed users  unrestricted

    Physical interfaces

    Storage (local
    quarantine/logs)
    2 x integrated
    hot-swap
    SSD (RAID)
    Ethernet interfaces
    (removable)
     8 GE copper
    No. of FleXi Port slots  4
    FleXi Port modules (optional)
    8 port GE copper
    8 port GE SFP*
    2 port 10 GE SFP+*
    4 port 10 GE SFP+*
    4 port SFP*
    plus 4 port GE
    copper LAN bypass
    I/O ports
    2 x USB 2.0 (front)
    1 x USB 3.0 (rear)
    2 x Mgmt Port (eth0/eth1, front)
    1 x COM (RJ45) (front)
    1 x VGA (rear)
    Display Multi-function LCD module
    Power supply
    2 x hot-swap
    internal auto-
    ranging 100-
    240VAC, 50-60
    Hz PSU

    Physical specifications

    Mounting 2U sliding rails (included)
    Dimensions
    Width x Depth x Height
    438 x 600 x 88 mm
    17.24 x 23.62 x 3.46 inches
    Weight
    17.8 kg / 39.24 lbs (unpacked)
    27 kg / 59.53 lbs (packed)
